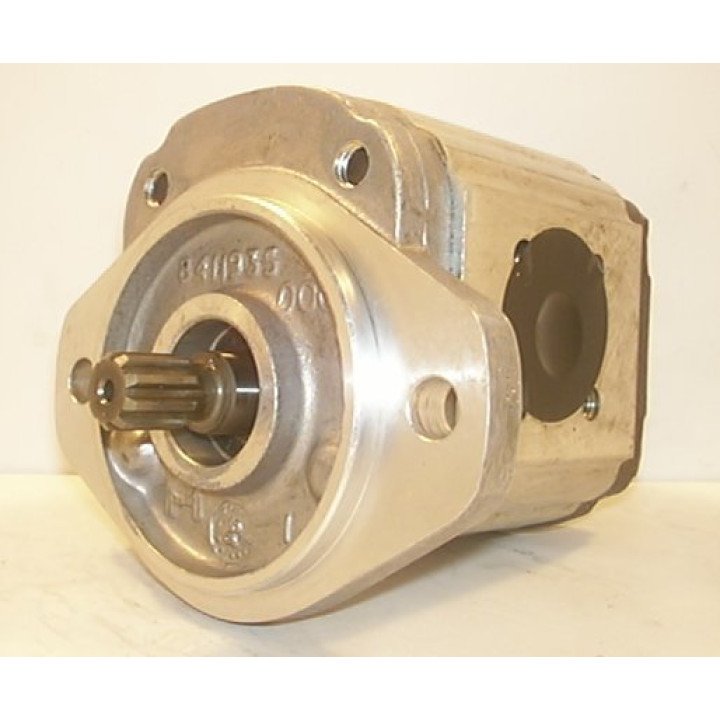

1PL 16.76CC/REV HYDRAULIC GEAR PUMP

1 PL Dowty/Ultra Pattern Gear Pumps - Front/ Single Pump.Clockwise Rotation.Displacement: 052cc/ rev ( 052 Litres at 1000 rpm).5/8” (15.875mm) SAE A 9 tooth spline shaft, actual diameter: 15.456mm, nominal diameter: 5/8” [15.875mm], J498-9T 16/32 DP Flat root side fit, 32.5mm stand out from face of flange.SAE A 2 bolt mounting flange 4.1/4" (106.38mm) slotted holes with a pilot 3.1/4" (82.55mm) diameter x 7.9mm high.Dowty Body ports with 4 tapped holes in the shape of a square, 30.48mm x 30.48mm, 4 holes 5/16”-18UNC x 14.0 minimum full thread, port diameter: 19.0mm, ports are identical at inlet and outlet..Modular front/ Intermediate section.Nitrile Shaft Seal
