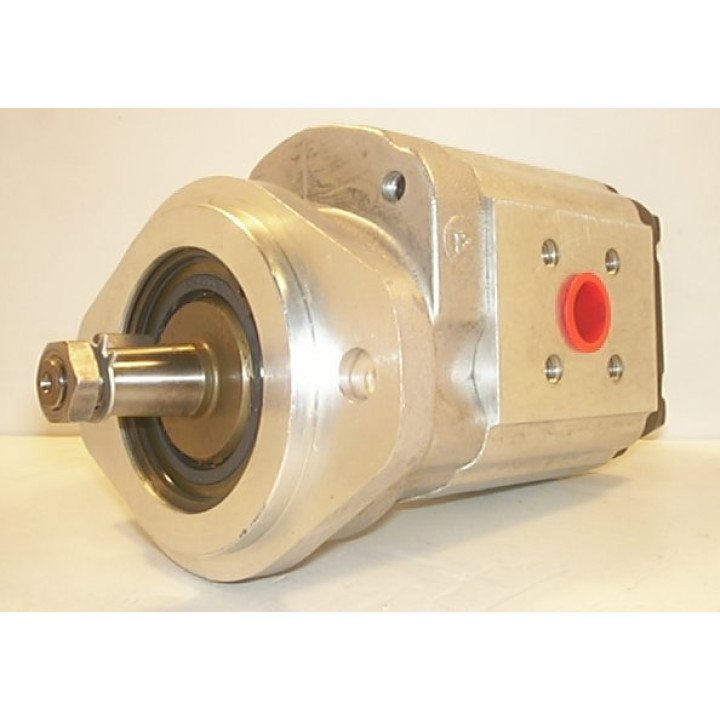

1PL 19.20CC/REV HYDRAULIC GEAR PUMP

1 PL Dowty/Ultra Pattern Gear Pumps - Front/ Single Pump.Anti-Clockwise Rotation.Displacement: 060cc/ rev ( 060 Litres at 1000 rpm).1:8 taper shaft with 7/16 – 20 UNF x 8.9 minimum thread and 3.2mm wide key, 40.7mm standout from the face of flange.SAE A 2 Bolt mounting flange 106.3mm, two tapped holes with a pilot diameter 82.55mm x 6.4mm high – Inboard bearing.Dowty Body ports with 4 tapped holes in the shape of a square, 30.48mm x 30.48mm, 4 holes 5/16”-18UNC x 14.0 minimum full thread, port diameter: 19.0mm, ports are identical at inlet and outlet..Single/ Rear pump.Nitrile Shaft Seal
