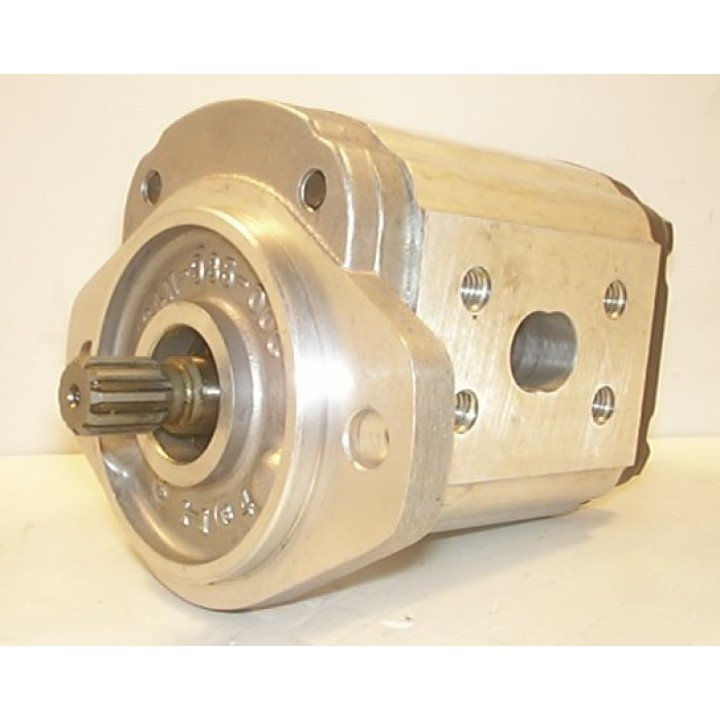

1PL 22.84CC/REV HYDRAULIC GEAR PUMP

1 PL Dowty/Ultra Pattern Gear Pumps - Front/ Single Pump.Clockwise Rotation.Displacement: 072cc/ rev ( 072 Litres at 1000 rpm).11/16" SAE, 10 Tooth Spline, actual diameter: 17.04 mm, nominal diameter: 11/16” [17.4625mm] 35mm stand out from the face of the flange.SAE A 2 bolt mounting flange 4.1/4" (106.38mm) slotted holes with a pilot 3.1/4" (82.55mm) diameter x 7.9mm high.SAE Split Flange Ports with 4 tapped holes in the shape of a rectangle Inlet: 25.4mm PCD tapped 38 - 16 UN x 13.5 minimum thread, around a central hole, Outlet: 19mm PCD tapped 38 - 16 UN x 13.5 minimum thread around a central hole.Modular front/ Intermediate section.Nitrile Shaft Seal
