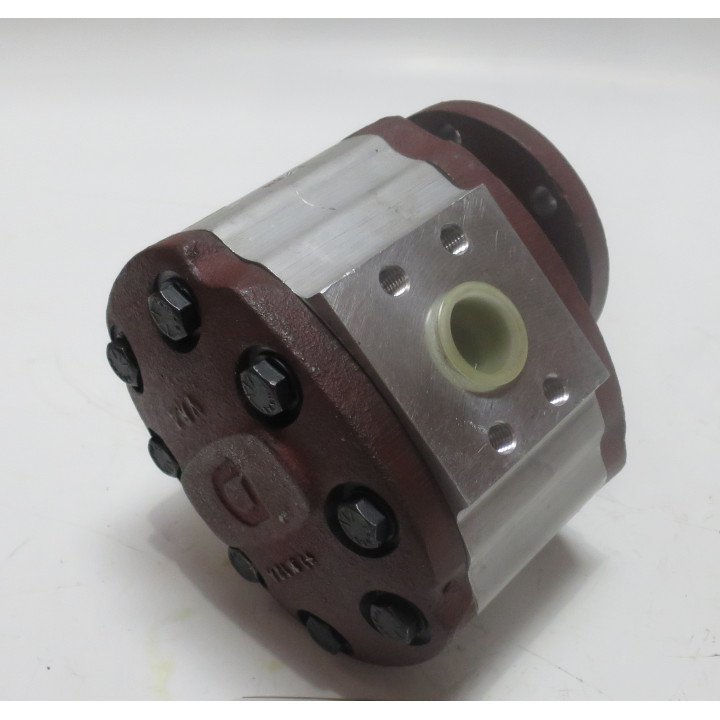

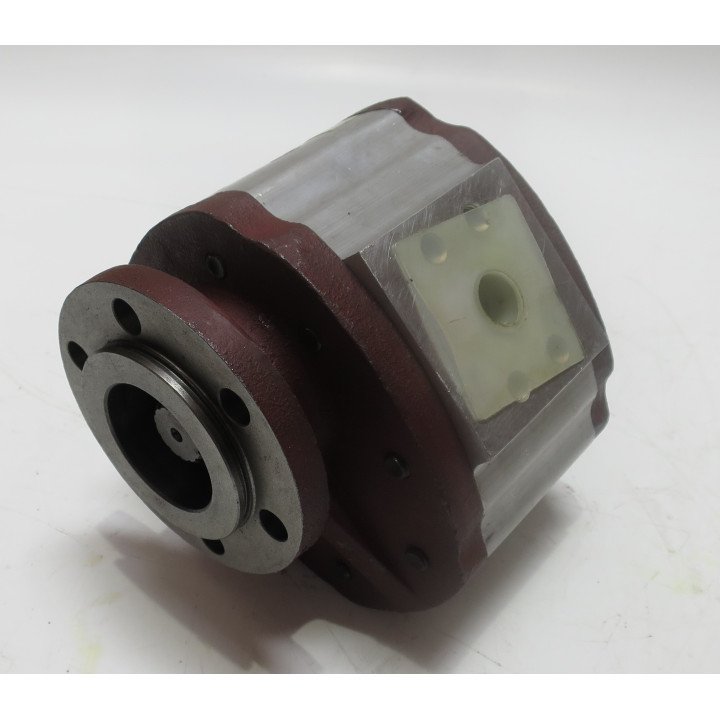

2PL 22.71CC/REV HYDRAULIC GEAR PUMP

2 PL Dowty/Ultra Pattern Gear Pumps - Front/ Single Pump.Clockwise Rotation.Displacement: 22.71cc/ rev ( 22.71 Litres at 1000 rpm).SAE B short 13 tooth spline shaft, 16/32DP Flat root side fit, nominal diameter: 21mm, Circular tooth thickness 0.13mm less than SAE J498a Class standard. Negative 0.9mm (recessed) standout from face of flange.Flange with 6 Bolt round with a pilot 66.7mm diameter with O ring x 6.4mm high .SAE Split Flange (1” [25.4mm] inlet diameter, ¾” [19.05mm] outlet diameter) ports with 4 tapped holes in the shape of a rectangle ½” [12.7mm] minimum thread Inlet: 26.19mm x 52.37mm PCD tapped 3/8” – 16 UNC around a central hole Outlet: 22.23mm x 47.63mm PCD tapped 3/8” – 16 UNC around a central hole.Modular front section
