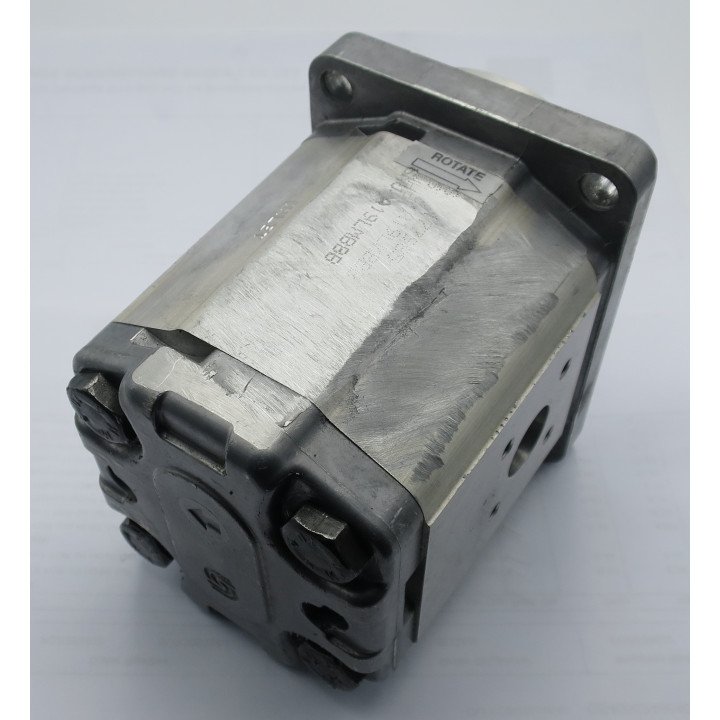

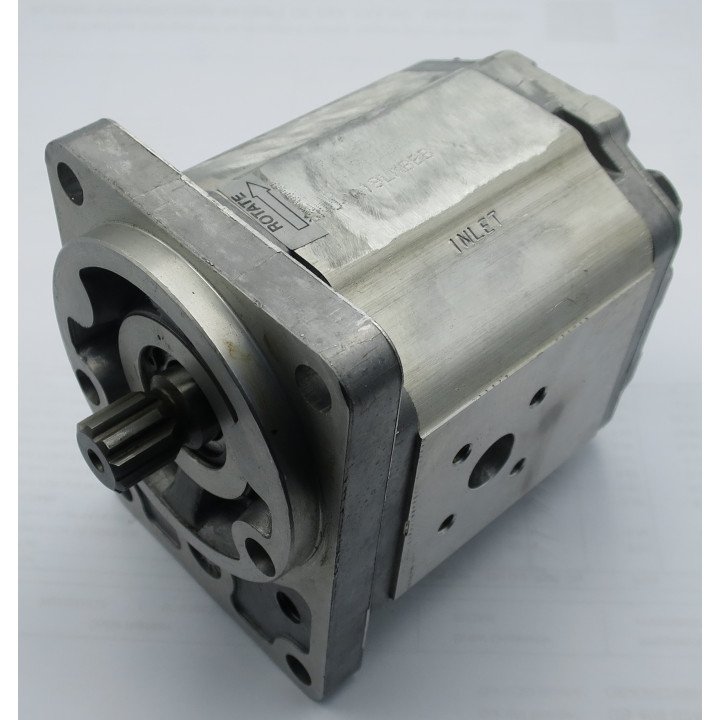

A19L SC02 HYDRAULIC GEAR PUMP

Group 2 Single Directional Motor.Anti-clockwise Rotation.Displacement: 19.2cc/ rev (19.2 Litres at 1000 rpm).Long Din 5482 B17 x 14 9 tooth splined shaft, actual diameter: 26mm, nominal diameter: 17mm, standout 19.5mm from the face of flange.Din / Bosch 4 bolt mounting flange 72mm x 100mm with a pilot 80mm diameter x 7.2mm high.Flange ports with 4 tapped holes in the shape of a square Inlet: 40[1.575] PCD tapped M6 around a central hole Outlet: 35[1.378] PCD tapped M6 around a central hole.Standard blank rear cover.Nitrile Shaft Seals
