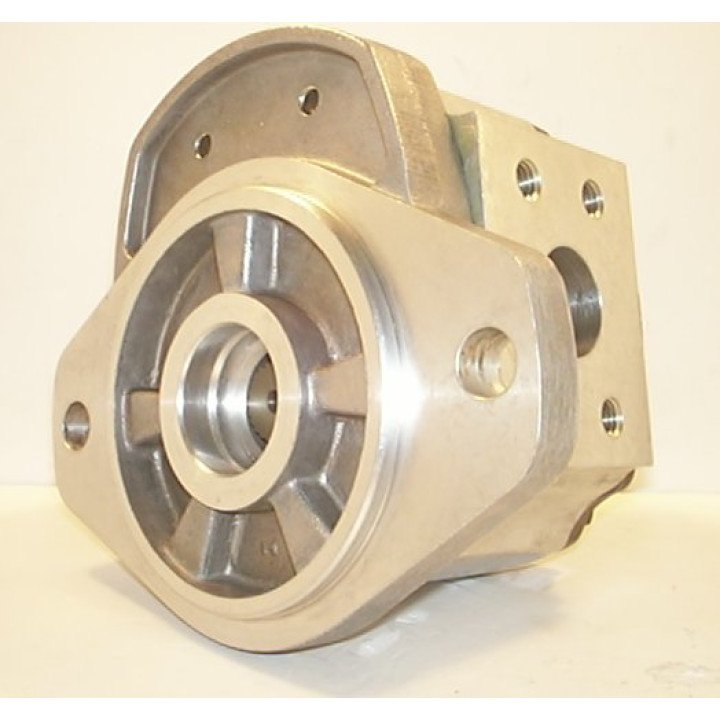

3PL 56.26 CC/REV CENTRE / REAR

3 PL Dowty/ Ultra Pattern Gear Pumps - Intermediate/ Rear Section.Clockwise Rotation.Displacement: 56.20cc/ rev ( 56.20 Litres at 1000 rpm)...SAE split flange with 4 tapped holes in the shape of a rectangle. Inlet: 1 ½” SAE 35.71mm x 69.85mm, 4 holes ½”-13UNC x 22.9 minimum thread, around a centre oval hole (Diameter 1: 38.1mm, Diameter 2: 33.3mm). Outlet: 1” SAE 26.19mm x 52.37mm, 4 holes 3/8”-16UNCx22.9 minimum thread, around a central hole (Diameter: 25.4mm).Modular front/ Intermediate section.Nitrile Shaft Seal
