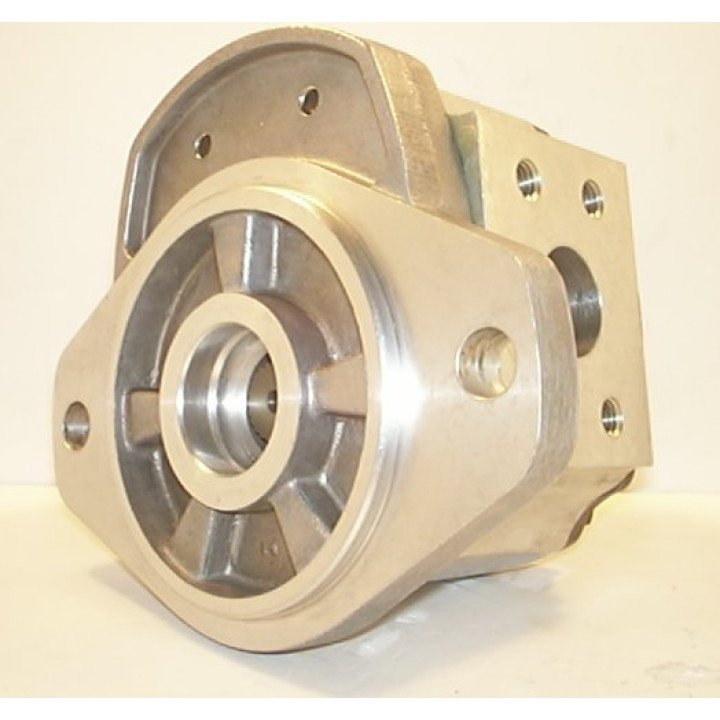

3PL 101.77cc/rev Centre/Rear

3 PL Dowty/ Ultra Pattern Gear Pumps - Intermediate/ Rear Section.Clockwise Rotation.Displacement: 101.77cc/ rev ( 101.77 Litres at 1000 rpm)...SAE split flange with 4 tapped holes in the shape of a rectangle. Inlet: 1 ½” SAE 35.71mm x 69.85mm, 4 holes ½”-13UNC x 22.9 minimum thread, around a centre oval hole (Diameter 1: 38.1mm, Diameter 2: 33.3mm). Outlet: 1 1/4” SAE 58.72mm x 30.18mm, 4 holes 7/16”-14UNCx24.1 minimum thread, around a central hole (Diameter: 31.8mm).Modular front/ Intermediate section.Nitrile Shaft Seal
