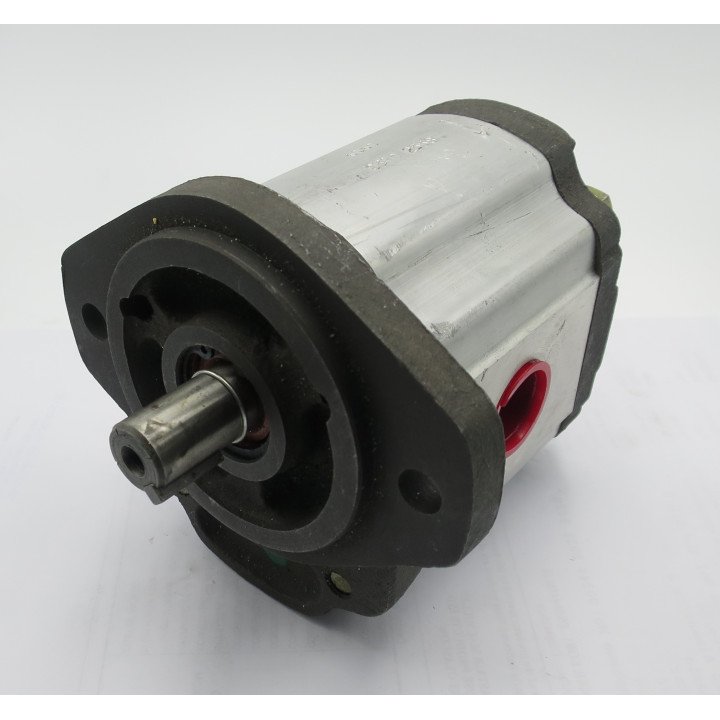

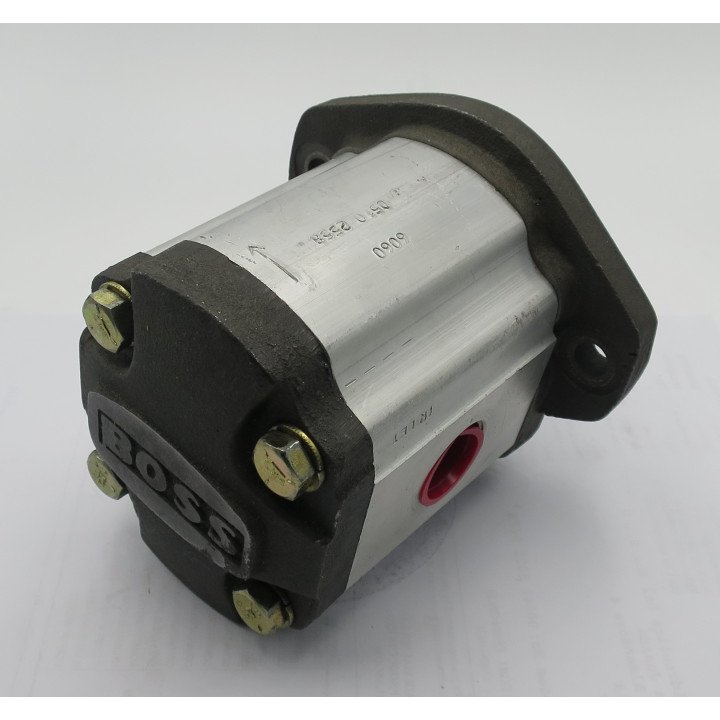

1PL 19.20CC/REV HYDRAULIC GEAR PUMP

1 PL Dowty/Ultra Pattern Gear Pumps - Front/ Single Pump.Clockwise Rotation.Displacement: 060cc/ rev ( 060 Litres at 1000 rpm).SAE B 17.46mm parallel shaft with 3/16” square key, 44.7mm standout from the face of flange and 7/16” – 20 UNF x 8.9 minimum full thread.SAE A 2 bolt mounting flange 4.1/4" (106.38mm) slotted holes with a pilot 3.1/4" (82.55mm) diameter x 7.9mm high.BSP threaded port Inlet: ¾” BSPF Outlet: ¾” BSPF.Modular front/ Intermediate section.Nitrile Shaft Seal
