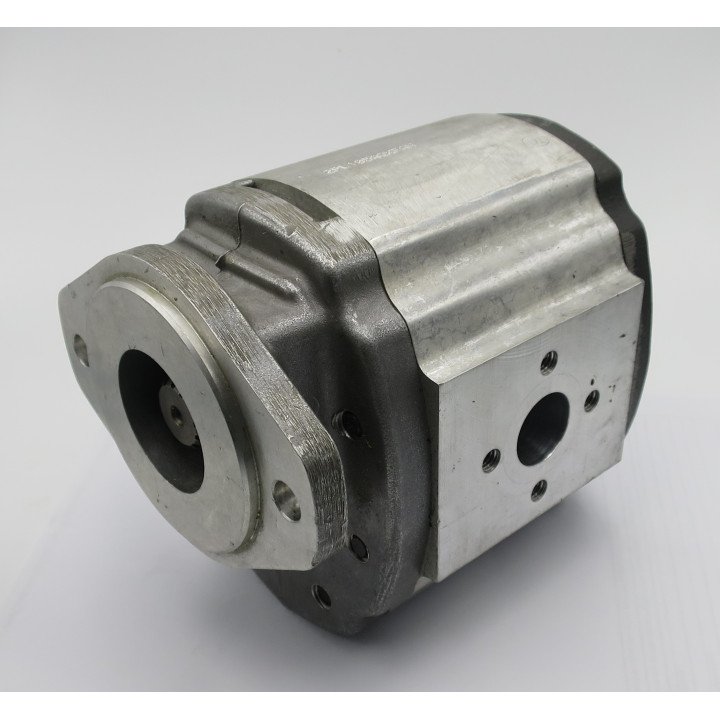

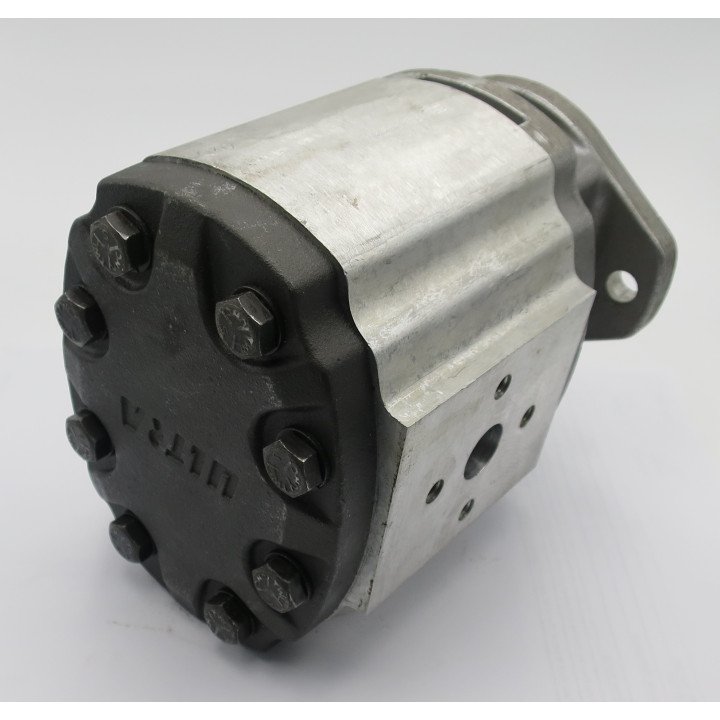

2PL 33.23CC/REV HYDRAULIC GEAR PUMP

2 PL Dowty/Ultra Pattern Gear Pumps - Front/ Single Pump.Anti-Clockwise Rotation.Displacement: 33.23cc/ rev ( 33.23 Litres at 1000 rpm).SAE B short 13 tooth spline shaft, 16/32DP Flat root side fit, nominal diameter: 21mm, Circular tooth thickness 0.13mm less than SAE J498a Class standard. Negative 0.9mm (recessed) standout from face of flange.SAE A 2 bolt mounting flange 4.19/4” [106.38mm] slotted holes with a pilot 82.6mm diameter x 4mm high.Dowty body ports – inlet and outlet tappings are identical, 5/16” – 18 UNC x 12.7 minimum thread equispaced on 48.13 PCD, inlet diameter: 25.4mm, Outlet diameter: 19mm.Modular front section
