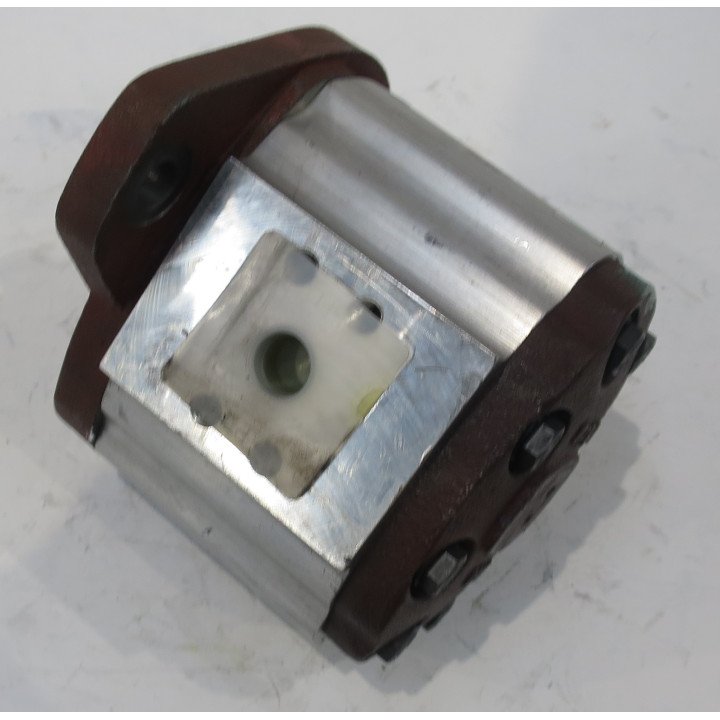

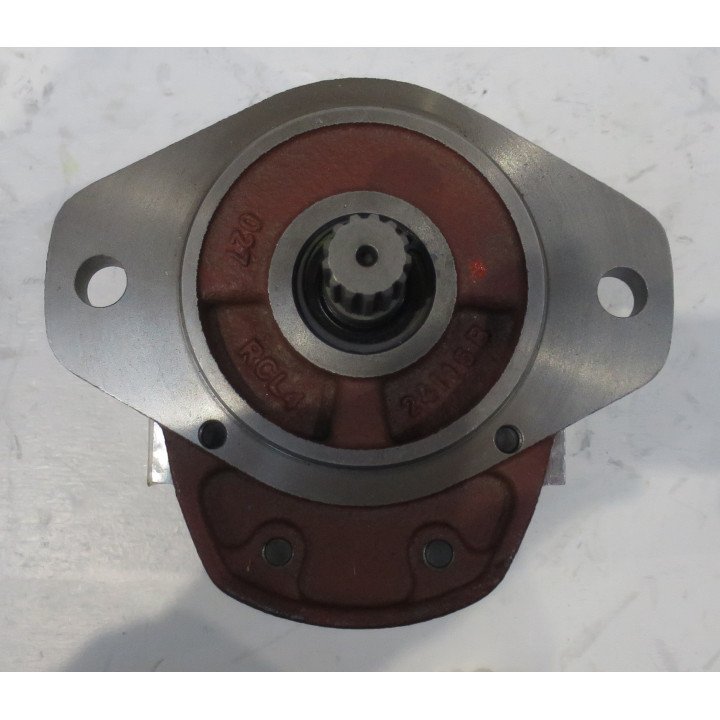

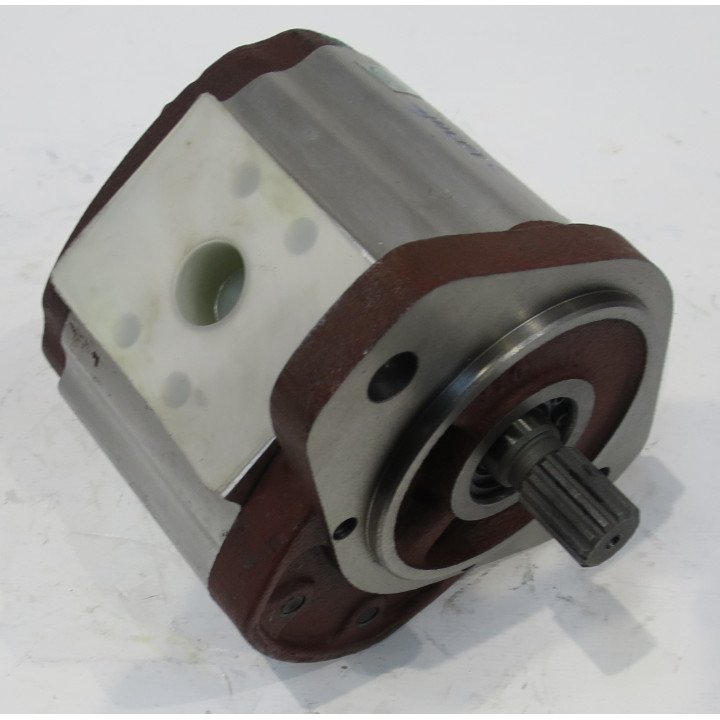

2PL 33.23CC/REV - 0325V

2 PL Dowty/Ultra Pattern Gear Pumps - Front/ Single Pump.Clockwise Rotation.Displacement: 33.23cc/ rev ( 33.23 Litres at 1000 rpm).SAE B 13 tooth spline shaft, nominal diameter 21mm J498-13T 16/32DP Flat root side fit 41.9mm stand out from face of flange.SAE B 2 bolt mounting flange 5 3/4" (146.05mm) slotted holes with a pilot 4" (101.6mm) diameter x 5.1mm high.SAE Split Flange (1” [25.4mm] inlet diameter, ¾” [19.05mm] outlet diameter) ports with 4 tapped holes in the shape of a rectangle ½” [12.7mm] minimum thread Inlet: 26.19mm x 52.37mm PCD tapped 3/8” – 16 UNC around a central hole Outlet: 22.23mm x 47.63mm PCD tapped 3/8” – 16 UNC around a central hole.Single pump
