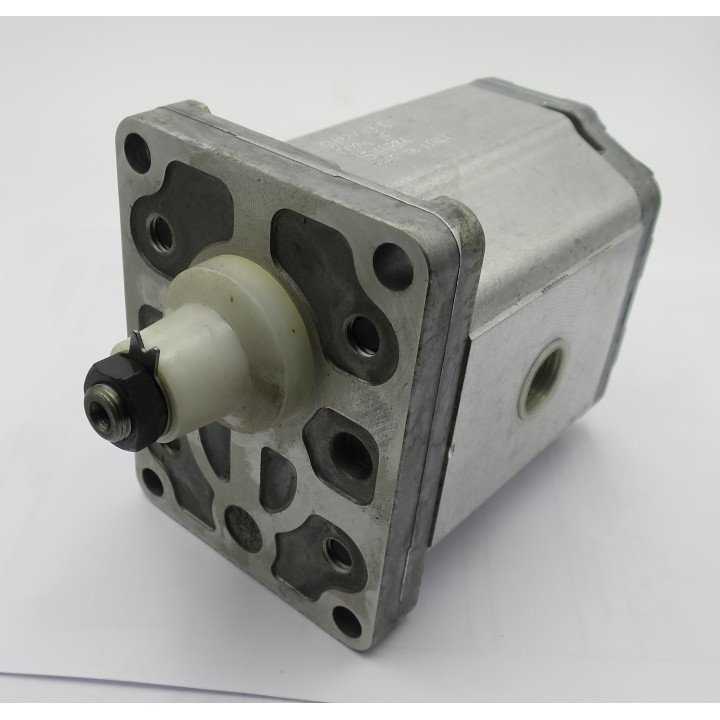

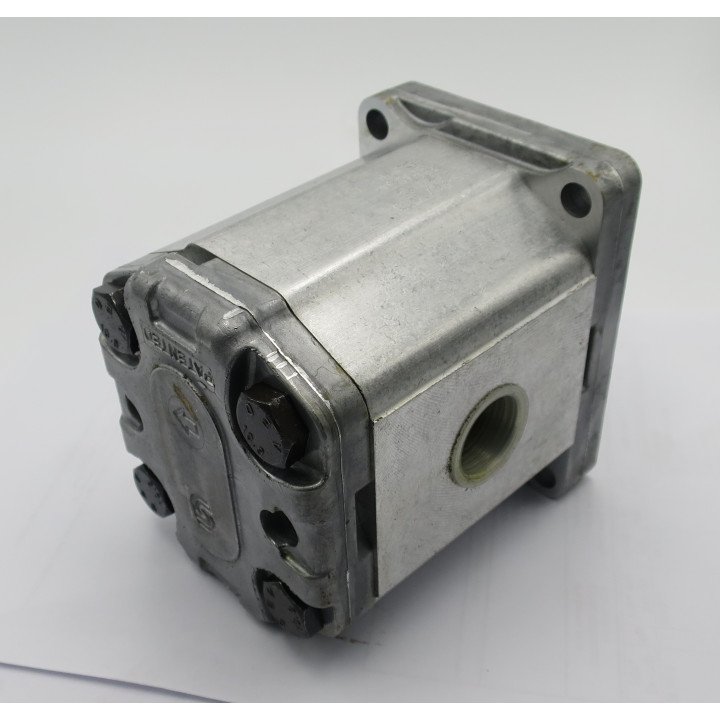

SHP/19D C001 1F HIGH PRESSURE

SHP2 – Group 2 Hydraulic Gear Pump (higher pressure version of SNP2).Clockwise rotation.Displacement: 19.2cc/ rev (19.2 Litres at 1000 rpm).Standard Group 2 1:8 taper shaft with M12 x 1.25 male thread and 4mm wide woodruff key, 40.5mm standout from the face of flange.Standard European 4 bolt mounting flange 71.5mm x 96.2mm with a pilot 36.5mm diameter x 5mm high.BSP threaded port Inlet: 3/4 BSP Outlet: 1/2 BSP.Standard blank rear cover.Nitrile Shaft Seal
